BIM for Electrical Engineering: A Comprehensive Guide for Engineers

What is BIM and why is it important for electrical engineering?

The electrical engineering landscape has changed dramatically with the rise of Building Information Modeling (BIM). It is a technology that goes beyond traditional CAD drawings to create intelligent, coordinated electrical systems capable of seamless integration with overall building design. For electrical engineers, BIM is a fundamental shift from reactive design approaches to proactive system planning capable of delivering superior outcomes.

Understanding building information modeling

BIM creates digital twins (digital representations of existing buildings) for physical structures that go beyond simple 3D visualization to also include information about scheduling, budgeting, facility management, and many other fields – centralizing information from different sources. Electrical engineering is no exception here, and every electrical component can be represented as an intelligent object containing properties, specifications, and relationships with other building systems.

Generally speaking, the power of BIM extends across several different dimensions:

• 3D – spatial modeling, necessary for accurate placement and routing.
• 4D – scheduling integration, used primarily for construction sequencing.
• 5D – cost analysis capabilities to optimize budgets in different ways.
• 6D – sustainability metrics for energy performance.

This list is far from complete, and there are at least a few other dimensions that BIM can work in, but these are currently the most popular ones, while 7D and 8D are comparatively less popular, considering how each new dimension has to build on all the previous ones, which greatly expands the overall volume of data and leads to various challenges.

Pros and Cons of BIM usage

Significance of BIM for electrical engineers

Modern electrical systems are the “nervous systems” of intelligent buildings – environments that connect different systems with one another, necessitating unprecedented coordination with architectural, structural, mechanical, and other elements. BIM can address this complexity by serving as a centralized collaborative platform where electrical engineers can detect conflicts and optimize integration before any on-site construction processes are initiated.

The sheer precision of BIM completely erases traditional overestimation practices. As an example from electrical engineering, it is now possible to right-size systems without compromising safety margins thanks to the ability to incorporate actual cable lengths and spatial relationships directly into the model. This is how accuracy alone can be translated into noticeable cost-savings and improvements in reliability.

How BIM is transforming electrical engineering

The introduction of BIM has fundamentally changed how and when electrical engineers contribute to construction projects. Instead of adapting systems to predetermined spaces, electrical requirements now inform early architectural decisions, elevating the discipline from secondary consideration to integral design partner.

This transformation also enables many other beneficial processes, such as the coordination of prefabrication, a process in which precise BIM measurements allow the off-site assembly of complex electrical components. Forward-thinking firms are already using this approach and have seen noticeable reductions in installation time purely thanks to BIM-driven prefabrication.

Most significantly, BIM can facilitate the integration of renewable energy and smart building systems. Highly detailed simulations of building performance under various conditions is one example of how sustainability is pursued in the industry, along with the optimization of the placement of photovoltaics and the coordination of complex automation networks with exceptional precision.

How can BIM improve efficiency in electrical engineering projects?

BIM transforms the efficiency of electrical engineering by centralizing project information and automating many routine tasks. The technology aims to eliminate the traditional workflow inefficiencies that plague electrical projects, creating processes that are much more streamlined and deliver superior results in less time.

Enhancing project efficiency with BIM technology

BIM operates as a single source of truth for all electrical engineering data, which eliminates time spent searching through drawings and specifications that have often been scattered and are difficult to locate in legacy systems. Centralization also enables the automatic generation of cable schedules, panel schedules, and equipment lists that are updated instantly as soon as designs change in any way.

Leading firms claim to have gained impressive time savings on documentation tasks due to the efficiency of BIM automation. The technology also introduces parametric design capabilities in which electrical components follow a set of established rules: lighting fixtures adjust based on illumination requirements, receptacles maintain code-compliant spacing, circuit breakers are automatically sized to loads, and so on.

Reducing design errors through BIM

Spatial conflicts

Design errors have a cascading effect leading to all kinds of cost overruns and installation problems. BIM’s 3D visualization can reveal spatial conflicts with ease, including issues that may have been missed in traditional 2D drawings. At the same time, the automated clash detection capabilities of BIM can systematically identify potential issues between electrical systems and other building elements.

Clearance rules

Beyond physical conflicts, BIM can also detect clearance violations such as insufficient service space around panels or inadequate separation between data and power cables. When architectural changes occur, electrical engineers are instantly notified in order to prevent coordination errors spawned by outdated information.

Streamlining workflows with BIM software

BIM also breaks down traditional silos, enabling concurrent work on interconnected systems instead of a linear progression of tasks. The bidirectional relationship between models and documentation makes it so that all changes are updated automatically across schedules, specifications, diagrams, etc.

Virtual walkthroughs allow stakeholders to gain a better understanding of electrical designs without interpreting complex technical drawings. The flagging of issues directly within models creates completely transparent records of review comments and resolutions. Integrated analysis tools enable lighting calculations and load analysis within the same environment used for design, which eliminates friction in data export.

What are the collaboration benefits of BIM for electrical engineers?

Modern building design requires seamless integration between multiple disciplines, and BIM contributes greatly to this requirement by creating a digital commons – shared digital resources – where electrical engineers can collaborate effectively with other project participants such as contractors, architects, etc. This collaborative environment transforms isolated design processes into one coordinated framework capable of delivering significantly better results than before.

Improved collaboration between architects and electrical engineers

BIM dissolves traditional barriers between electrical engineers and architects using shared models with real-time visibility of design changes. Architects immediately see all the electrical requirements that influence spatial decisions, while electrical engineers gain access to architectural modifications that affect their systems.

This bidirectional information flow enables electrical considerations to influence architectural decisions from early in the design phase. In planning electrical rooms or distribution pathways, engineers gain the ability to advocate for spatial needs using precise visualization instead of relying on nothing but abstract specifications. Visual communication is an immensely useful feature that transcends technical jargon, creating a common understanding that dramatically reduces the possibility of misinterpretations.

Using BIM to coordinate electrical systems within a building

BIM excels at solving the proverbial multidimensional puzzle of coordinating electrical systems with other components, such as structural elements, plumbing segments, mechanical objects, and so on. The technology can detect conflicts that would have been impossible to identify using traditional 2D workflow coordination processes. Some of the most notable examples of such conflicts are:

• The coordination of ceiling-mounted devices, such as diffusers, sprinklers, or lighting.
• Conduit runs conflicting with HVAC ductwork.
• Cable tray pathways navigating structural elements.
• Adequate separation between water lines and electrical components.

In addition to clash detection to help avoid errors and issues, BIM also enables opportunity detection, the ability to identify synergies where systems are able to share space, supports, or access points in a convenient manner.

Role of BIM in managing project teams

Complex electrical projects often require distributed teams with specialized expertise. In such cases, BIM can act as a digital nexus that connects diverse contributors using advanced permission systems that control who can view or modify different aspects of the project model.

“With BIM, everyone sees the information and changes in real time and can respond to any alterations needed before the shovel hits the ground. This improves build times, waste, and expensive change orders in the field.”

Patrick MacLeamy, FAIA, Chairman of buildingSMART International

Cloud-based platforms with BIM elements enable real-time updates and notifications. When electrical engineers modify distribution panels, team members receive immediate alerts in order to prevent coordination failures due to outdated information. BIM creates persistent records of all design decisions and their evolution, acting as an invaluable hub that proves its worth when it comes to maintaining accountability or resolving disputes.

How does BIM help in reducing costs and delays in electrical engineering projects?

BIM transforms project economics by shifting problem-solving from expensive construction phases to the virtual design environment. It is a predictive approach that delivers quantifiable cost savings and schedule improvements, justifying investment in the implementation of BIM with improved project outcomes.

Identifying and resolving electrical system clashes using BIM models

Clash detection offers immediate cost benefits by identifying conflicts before construction begins. Undetected clashes tend to create cascading effects of issues, from resource allocation problems and unrealistic change orders to schedule delays and other problems.

The spatial coordination tools of BIM can conduct sophisticated rule-based clash detection processes, accounting for all code clearances, safety separations, and proper maintenance access. Resolving clashes during the design phase is generally several times less expensive than doing so during construction, which can often mean thousands of dollars worth of savings for each clash in complex projects.

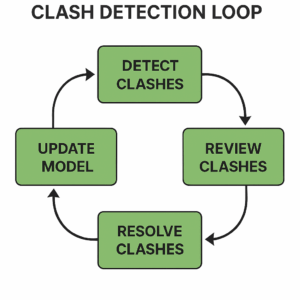

Clash detection loop in its base form is relatively simple, but it can be sufficiently complicated using various features, like the ones mentioned above.

Minimizing material waste and reducing overruns with BIM for electrical systems

Traditional estimating incorporates significant contingencies for uncertainties in material quantities. BIM provides quantitative precision as a counter-offer in this field, eliminating waste through exact cable lengths, precise conduit measurements, and accurate component counts.

This granular quantification puts an end to over-ordering practices, frequently delivering noticeable savings on material costs for projects with extensive electrical distribution. BIM-coordinated models can even reduce installation waste by offering clear and precise routing instructions to minimize the number of field modifications required. Experts in the field have noted that BIM-driven prefabrication provides impressive results when it comes to the reduction of material waste.

How BIM facilitates early detection of electrical design issues to prevent delays

BIM can enable virtual testing through integrated analysis tools that reveal performance issues before the energization of the system. Essential simulations here include illumination verification, load flow analysis, voltage drop calculations (based on actual cable paths), and protective device coordination studies.

Every issue identified during virtual assessment is a potential delay in the making that has been successfully averted. In mission-critical facilities like data centers or hospitals, where inadequacies with electrical systems can delay occupancy certification, early detection can be an invaluable way to prevent schedule impacts measured in weeks rather than hours or days.

Optimizing resource allocation and reducing downtime in electrical engineering projects with BIM

4D BIM deserves a special mention here. It integrates scheduling with spatial models, which enables electrical contractors to visualize exactly where and when teams should work throughout the entire project lifecycle. These precision scheduling capabilities eliminate expensive idle time, optimizing crew compositions in the process.

The fact that workers often spend up to a third of their work time waiting or reworking installations is an unfortunate reality that is well-known in the industry. BIM-driven scheduling can dramatically reduce this non-productive time, which has a direct positive impact on total labor costs. Beyond construction, BIM can also offer facility managers the ability to access accurate as-built information in order to reduce diagnostic time during maintenance, which transforms hours of circuit tracing into simple and clean digital queries.

What are the key benefits of adopting BIM in electrical engineering?

The adoption of BIM leads to a systemic transformation that extends beyond individual project improvements to deliver compounding value throughout electrical system life cycles. Understanding these cumulative benefits offers essential context for professionals evaluating BIM investment and implementation strategies.

Comprehensive benefits of BIM for electrical systems

BIM dramatically improves design quality by enabling 3D visualization and performance simulation, both of which are incredibly helpful for iterative optimization processes. Engineers can analyze energy consumption patterns, optimize conductor sizing, evaluate electromagnetic interference, and simulate emergency power scenarios, all of which are completely impractical with traditional methods.

The data-rich environment transforms documentation quality by creating a unified data model to gather information that is traditionally fragmented across multiple sets of drawings and specifications. Changes are automatically propagated throughout all representations of the system, greatly reducing the number of errors from documentation inconsistencies, which used to be a very common cause for construction change orders before the introduction of BIM.

Most significantly, BIM can preserve intellectual work through multiple project lifecycles. Design decisions, calculations, and coordination solutions are always embedded into models instead of being lost between project phases, which makes them assets capable of delivering value long after the initial design is complete.

Improving coordination in electrical engineering projects

BIM can even address common coordination failures, which is often the largest source of electrical installation rework, using multi-faceted capabilities extending beyond the basic pre-construction conflict checking toolset. Temporal coordination with the help of 4D BIM can help engineers plan installations with unprecedented precision, preventing scenarios where electrical work must be modified for later construction activities.

Cross-disciplinary optimization enables synergic opportunities in which lighting is integrated with architectural elements or power distribution is coordinated with structural systems for shared pathways. The advantages of coordination can even extend to construction logistics, with precise model information enabling material delivery scheduling that matches installation sequences, resulting in a reduction of both handling and on-site storage costs.

Long-term advantages of BIM adoption in the industry

As mentioned above, BIM creates compounding knowledge assets that can be used in later projects. Organizations develop standardized component libraries and design templates which embody best practices and become increasingly valuable through multiple projects. Leading firms report massive time reductions for repeated elements which are made possible by mature asset libraries from past projects.

Another substantial contribution of BIM is the ability to form institutional memory that transcends individual project teams. Engineer knowledge can remain partially captured in templates, standards, and libraries, which reduces the impact of potential personnel changes in the company. As for the broader industry, widespread adoption facilitates advancements in standardization, as manufacturers provide BIM-compatible product data, which eliminates the manual modeling of components and improves accuracy at the same time.

What challenges do electrical engineers face when implementing BIM?

The implementation of BIM presents a number of substantial challenges that require both realistic expectations and strategic planning to overcome. Success demands more than simple software acquisition – it requires fundamental changes in skills, processes, and even organizational culture. Detailed knowledge of these obstacles can help businesses develop effective implementation roadmaps while setting appropriate expectations from the start.

Common obstacles in adopting BIM technology

The primary hurdle in implementation is the substantial upfront investment, which extends beyond software licensing to also include training expenses, hardware updates, and the productivity impacts that are inevitable during transition periods. For smaller businesses, these front-loaded costs may seem completely prohibitive compared to all the distributed benefits that accumulate over time and after multiple projects.

Most BIM software options on the market have steep learning curves. Unlike traditional CAD systems that essentially digitize manual drafting processes, BIM platforms require users to think in building systems and components instead of symbols or lines. This is a drastic conceptual shift that is particularly challenging for experienced designers with efficient workflows based around conventional CAD software.

Technical limitations specific to electrical engineering play their own part in this issue. While architectural modeling has matured substantially over the years, it is common for electrical functionality to lag behind on the evolutionary ladder. Commonly reported issues include:

• Inadequate component libraries
• Limited support for schematic diagrams and single-line representations
• Difficulty modeling complex cable management systems
• Performance challenges in modeling extensive distribution networks

Legal and contractual complexities present another layer of challenges to implementation. Traditional contracts rarely have the ability to address BIM deliverables, model ownership, liability for model accuracy, or responsibility for coordination conflicts. Companies must navigate ever-evolving legal frameworks while also establishing clear protocols for version control, model sharing, and the distribution of liability among all project stakeholders.

Data security and intellectual property concerns are a noteworthy issue for many electrical engineering firms and professionals. BIM models contain highly detailed information about electrical systems, equipment specifications, and design methodologies that some businesses may consider proprietary. Concerns about access control, data ownership, and the potential exposure of competitive advantages can be the reason to slow down the adoption of BIM, particularly when cloud-based platforms are involved.

Resistance to change from experienced staff is its own cultural challenge that extends beyond technical training. It is not uncommon for senior electrical engineers who have achieved success with established traditional methods to question the value of learning new technologies such as BIM. Skepticism from these experts can manifest in internal resistance that undermines implementation efforts, especially when combined with concerns around initial productivity decreases during the learning period.

At the same time, one of the biggest obstacles standing in the way of proper BIM implementation is the coordination of all the necessary processes among multiple stakeholders. Even when electrical firms readily embrace BIM, they are often working with clients, architects, or contractors that have dramatically different levels of sophistication with BIM. This unfortunate reality forms an uneven landscape where the full benefits of implementation are much more difficult to achieve.

Strategies to overcome challenges in BIM implementation

Successful BIM implementations necessitate a thought-out strategic approach that addresses the technical and organizational challenges of the process. Effective implementations require a combination of calibrated expectations and a phased approach, as most attempts at complete transformation have a very low chance of success.

Establishing clear objectives tailored to electrical engineering offers a much-needed focus. Instead of pursuing a generic BIM implementation, clever businesses identify specific processes such as panel layouts or lighting coordination sequences where BIM generates immediate value upon implementation. Targeted implementations like these can create visible wins for the process early on, building momentum for broader adoption in the future.

All the cost barriers require creative investment management, at the very least:

• Starting with pilot projects in order to demonstrate ROI
• Collaborating with partners to share resources
• Utilizing cloud platforms to reduce hardware requirements
• Attempting phased implementation in order to spread costs across fiscal periods

Learning curve challenges respond well to structured training that combines formal instruction with hands-on application and mentoring. The most successful approaches combine initial training with immediate real project application and various skill reinforcement opportunities.

Certain electrical engineering firms are also developing their own customized solutions to extend standard BIM capabilities if the built-in features become a technical limitation. This includes custom component libraries, specialized analysis plug-ins, or automated routines that handle repetitive tasks. While all these custom elements require their own upfront investments on top of the cost of BIM implementation, they often deliver substantial value in the long-term by addressing electrical-specific modeling challenges.

Clear BIM protocols must be established early on in the process of developing contractual frameworks, with the proactive engagement of legal counsel and project stakeholders. It is recommended that any company in this field develop standard contractual language in order to address model deliverables, accuracy expectations, coordination responsibilities, and the distribution of liability. Industry organizations are increasingly providing template contract language that businesses can adapt to their own specific needs without the need to write everything from scratch.

Strategies for change management which specifically target staff resistance include clear communication about the rationale for implementation, the involvement of skeptical team members in the selection of pilot projects, and the establishment of mentorship programs pairing BIM advocates with reluctant adopters. Recognition and incentive programs to reward the development of BIM proficiency may also work in some cases. Generally speaking, the primary goal is to create a culture of collaboration, which is a topic that warrants a separate section below.

Building a culture of collaboration around BIM

Cultural transformation represents perhaps the most difficult challenge, requiring drastic mindset changes in addition to technical proficiency. Creating collaborative cultures that embrace information sharing is an essential element for realizing the full potential of BIM implementation.

Successful transformation begins with clear commitment from leadership. When senior engineers demonstrate personal engagement with BIM instead of simply delegating it to technical staff, they signal strategic importance and legitimize the time investment for skill development.

Establishing communities of practice accelerates cultural change through knowledge-sharing forums and collaborative problem-solving. These communities create a convenient atmosphere for the exchange of experience, the collective addressing of challenges and the joint development of standards.

Ultimately, a collaborative BIM culture requires a clear recognition of the fact that the greatest value emerges from integration rather than from optimization for individual disciplines. Successful companies embrace their role within the broader building ecosystem, actively looking for information-sharing opportunities and ways to contribute to the collective outcome.

Applications of BIM in electrical design and engineering projects

Building information modeling has evolved from a specialized design tool into an essential platform for executing electrical engineering projects in different types and scales of building. Its applications extend throughout the entire project lifecycle, from conceptual planning to construction and even into ongoing facility management. The most significant impact emerges when BIM is applied comprehensively rather than to specific, isolated tasks. This establishes a continuous digital thread to enhance practically every aspect of the delivery of electrical systems.

New projects

For new construction projects, BIM enables electrical engineers to participate in early design decisions which used to precede their involvement. Being able to quickly model alternative electrical distribution strategies during conceptual design allows engineers to have a bigger influence over spatial allocations and architectural configurations before they become fixed constants in the project model. This proactive engagement often results in more efficient electrical systems and reduced spatial requirements for electrical equipment.

Retrofit and renovation

Renovation and retrofit projects benefit in their own way from BIM’s ability to integrate existing conditions with new design elements. The existence of reality capture technologies helps engineers create accurate models of existing electrical infrastructure, which may have been documented much more poorly in legacy drawings. This precision reduces the uncertainty that typically drives up contingency costs in renovation projects while minimizing disruptions to ongoing operations during construction.

Sophisticated facilities

Complex facilities with mission-critical electrical systems, including industrial facilities, hospitals, or data centers, leverage BIM in order to validate the resilience and redundancy of systems. By modeling not only failure scenarios but also recovery processes and normal operations, engineers can verify that emergency power systems will operate as intended during all kinds of unusual situations such as outages. These simulations can even identify vulnerabilities that may have remained hidden until actual emergencies, preventing potentially catastrophic failures.

Sustainable design initiatives

Sustainable design initiatives gain a lot of support from the analytical feature set of BIM. Electrical engineers can model daylighting integration with artificial lighting controls, optimize renewable energy system layouts, and even simulate energy consumption in all kinds of operating scenarios. This data-driven approach can turn sustainability from a purely aspirational goal into quantifiable performance metrics that can be verified throughout the development of the design.

Essential features and tools of electrical BIM software

The effectiveness of BIM for electrical engineering depends a lot on selecting the appropriate software with capabilities aligned to the unique requirements of the discipline. A lot of general-purpose BIM platforms may be able to provide foundational functionality, but only purpose-built electrical tools deliver specialized capabilities that can dramatically enhance accuracy and productivity.

Autodesk Revit MEP (Mechanical, Engineering, Plumbing) is a good example of one such tool, with Revit itself being the de-facto industry standard for a lot of BIM tasks.

Despite its limitations, Revit is still the most widely adopted BIM platform due to its robust interoperability, extensive modeling tools, and strong support for multi-discipline coordination.

Knowing the most important features of these tools makes it a lot easier for businesses to make informed technology decisions that support their specific project needs.

Industry-specific features

Comprehensive electrical component libraries are the cornerstone of effective BIM implementation. These libraries should include not only geometric representations but also parametric intelligence – embedding electrical characteristics, clearance requirements, and connection specifications. The most valuable libraries also incorporate manufacturer-specific data, which allows engineers to select actual products instead of using generic placeholder objects during design development.

Circuit management capabilities distinguish truly electrical-focused BIM tools from generic modeling software. The ability to not only analyze electrical circuits but also create and modify them (complete with appropriate overcurrent protection, load calculations, and conductor sizing) is what turns a model from a spatial representation into a functional system. Advanced platforms can also conduct code compliance checks automatically, flagging potential violations for further review.

The integration of analysis can provide crucial feedback during the design process. In this case, it does not matter much if the integration is native or made possible thanks to seamless data exchange with specialized tools. Essential analyses include short circuit studies, voltage drop calculations, selective coordination verification, and lighting performance simulations. The bidirectional flow of information between analysis and modeling environments mentioned above ensures that design decisions reflect performance requirements when necessary.

Revizto

Another example that we would like to use here is Revizto and similar collaboration platforms. Revizto can enhance the BIM workflow by providing cloud-based coordination capabilities to bridge the gap between different software platforms. While Revizto is focused primarily on collaboration and 3D clash checks to reduce rework, it also serves as a valuable integration platform where electrical engineers can coordinate their work with other disciplines.

The platform’s ability to centralize project communication, track issues in real-time, and provide mobile access to model information makes it particularly useful for electrical contractors and field personnel who require access to BIM data on-site during the installation phase. In this page you can find one of many case studies of an electrical contractor switching to Revizto for streamlining internal processes, communication, and project coordination. Additionally, the screenshot above shows the interface of Revizto when interacting with specific clashes, while the screenshots below are going to cover other aspects of working with this tool.

Documentation and support

Documentation automation delivers significant efficiency gains when implemented properly. Key features include the automatic generation of panel schedules, circuit directories, and load calculations that update dynamically when the model changes. The ability to produce both graphical documents and tabular reports from the same centralized source greatly reduces the inconsistencies that have plagued traditional documentation methods for a long time.

Construction support features also play their own part, bridging the gap between design intent and field implementation. These include dedicated tools for creating:

• Detailed installation drawings
• Prefabrication instructions
• Material procurement lists

Some platforms even support mobile applications that allow field personnel to access model information on-site, reducing the number of requests for information and improving model accuracy.

BIM standards and protocols for electrical engineering

The successful implementation of electrical BIM relies heavily on established standards and protocols that ensure consistency, quality, and interoperability across not only projects but also disciplines. These frameworks offer a structural foundation that enables effective collaboration between electrical engineers, software platforms, and other building professionals. Understanding and adopting appropriate standards is important for realizing the full potential of BIM while avoiding expensive errors, such as data incompatibilities or coordination issues.

Industry standards and guidelines

The BIM landscape for electrical engineering is governed using several key international and industry-specific standards which define data structures, model organization, and information exchange protocols. ISO 19650 (stands for  International Organization for Standardization) is the overarching international standard for managing information over the entire built asset lifecycle via BIM. It offers comprehensive guidelines for information management processes that electrical engineers must understand and implement properly.

“Anyone who graduated around 2000, as an architect or an engineer, understands the value of digital transformation in the sector… BIM training introduces you to the concepts and principles of Building Information Modelling in line with ISO 19650 and provides sufficient skills and knowledge of the BIM process, standards and guidelines that support the digitalization of the construction industry.”

Nicoleta Panagiotidou, Architect and ISO 19650 Specialist, founder of BIM Design Hub.

Another good example is the Construction Operations Building Information Exchange standard, or COBie. It specifically addresses facility management data requirements, ensuring that all electrical system information created at different project phases remains accessible and usable throughout different building operations. For electrical engineers, this means modeling components with appropriate data fields that support long-term maintenance and operations activities.

Industry-specific guidelines also exist, from organizations such as the National Institute of Building Sciences, or the Building Industry Consulting Service International. They offer detailed electrical modeling standards and are also used for establishing consistent approaches to classifying electrical components, naming conventions, and even data attribution.

File formats and interoperability requirements

The success of electrical BIM depends on seamless data exchange between diverse software platforms and stakeholders. The Industry Foundation Classes (IFC) format serves as the primary open standard for BIM data exchange, enabling electrical models that were created on one software platform to be accurately interpreted by other applications without depending on proprietary formats.

However, there are some electrical-specific challenges in IFC implementations, as electrical components and properties may not translate properly between platforms. These interoperability limitations should be known to any competent electrical engineer, helping them make informed decisions about when to use native file formats versus open standards, especially when there is a need to work with specialized electrical analysis software.

COBie formats play their own role in electrical system documentation, offering standardized approaches to delivering the equipment schedules, maintenance data, and warranty information that facility managers need for ongoing operations.

Data exchange protocols and model organization

The effective implementation of electrical BIM requires the establishment of clear data exchange protocols that define how electrical information flows between project stakeholders. These protocols should specify the frequency of model sharing, version control procedures, and responsibility matrices that prevent coordination conflicts and ensure that all parties are working with up-to-date information.

Level of detail specifications for electrical (and other) components, also commonly referred to as LOD, are another critical part of the protocol. Electrical systems necessitate carefully calibrated LOD progressions from conceptual design through construction documentation, with clear definitions of which geometric details and data attributes are required for each major project phase. Over-modeling early on in the design phase creates unnecessary complexity for future processes, while under-modeling during construction can lead to substantial coordination failures.

Model organization standards establish consistent approaches to the categorization of electrical systems, including equipment grouping, circuit organization, and spatial navigation. These approaches facilitate effective model navigation and information extraction. These standards prove themselves particularly useful in large projects with extensive electrical systems, where poor organization can have a significant impact on productivity and the efficiency of coordination.

Conclusion

Building information modeling is more than a technological upgrade for electrical engineering: it is a fundamental transformation in how electrical systems are conceived, designed, and delivered within the broader construction ecosystem. In this comprehensive article, we have seen how BIM enables electrical engineers to move from reactive problem-solving to proactive system optimization, creating opportunities for unprecedented collaboration, cost savings, and performance enhancement.

The technology’s ability to create one source of truth for all information while automating routine tasks, detecting conflicts before construction, and facilitating seamless collaboration across disciplines positions BIM as an essential tool for modern electrical engineering practice. While the challenges to implementation may be substantial, from upfront investment costs to the requirement for drastic cultural transformation, the strategies and solutions outlined demonstrate that these obstacles can still be overcome with proper planning, phased approaches, and committed leadership.

As the construction industry continues its evolution toward greater integration, sustainability, and technological sophistication, electrical engineers who embrace BIM position themselves at the forefront of this transformation process. The compounding benefits of BIM adoption create long-term competitive advantages extending beyond individual project successes.

For electrical engineering firms contemplating this transition, the question is not whether to adopt BIM, but rather how quickly and efficiently it can be implemented to capture the entire transformative potential of the technology. The comprehensive guide we have presented here provides the foundation for making informed decisions and developing successful implementation strategies that will define the future of electrical engineering practice in an increasingly connected and collaborative industry.

Key Takeaways

• BIM enables proactive electrical system design through 3D visualization, clash detection, and performance simulation
• Implementation success depends on strategic planning and addressing upfront costs, training, and cultural challenges
• Cross-disciplinary collaboration is where BIM delivers the greatest value for electrical engineering projects
• Standard compliance helps ensure project consistency and effective data exchange between stakeholders

Frequently asked questions

How does BIM specifically support electrical system design?

BIM supports electrical system design by enabling 3D visualization of complex distribution networks, facilitating more precise equipment placement and cable routing while being able to detect spatial conflicts with other building systems automatically. Beyond its visualization capabilities, BIM can provide quantitative analysis of electrical performance parameters like voltage drop and short-circuit capacity, which allows engineers to optimize designs based on actual geometries instead of simplified approximations.

What types of electrical components can be modeled with BIM?

Modern BIM platforms support the modeling of virtually any electrical component imaginable, from distribution infrastructure to endpoint devices and everything in-between. Advanced implementations also include cable management systems, safety systems, and specialized equipment with associated clearances and connection requirements.

How can BIM help in load calculation and energy analysis for electrical projects?

BIM transforms load calculation and energy analysis by providing a data-rich environment where calculations are informed by actual equipment specifications, spatial relationships, and operational parameters. This high level of precision enables engineers to right-size electrical infrastructure, optimize energy consumption, and simulate performance under various scenarios, such as peak demand, partial occupancy, and emergency operations.
